Brand Name : | TengTian |
Model Number : | HG219 |
Certification : | BV,CE,ISO |
Price : | $100000 to $1 million |
Payment Terms : | L/C, T/T |
Supply Ability : | 21 sets per year |
Delivery Time : | 150 days |

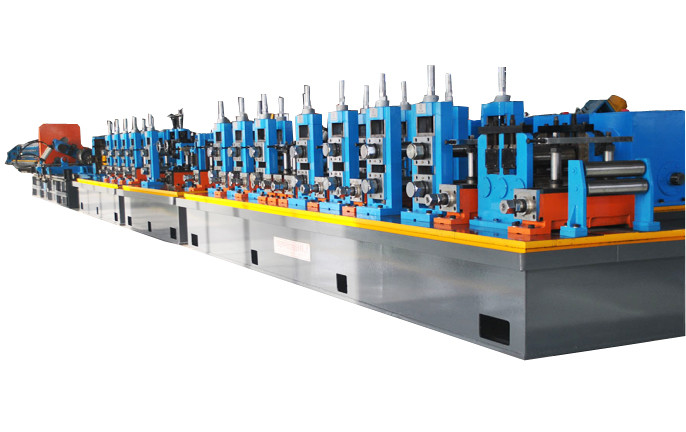

Q235 Carbon Steel Pipe Making Machine for Round Pipe Various Size
It is designed to produce welded steel pipes ,include round pipe , square pipe and rectangle pipe. Adopt roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
(1)Material Specifications: | |
Standard | Conforming to the YB189-64 standard |
Material | Low carbon steel and low alloy steel, Q235 |
Strip Width | 320-700mm |
Strip Thickness: | 1.5-6.0mm |
Inner Diameter of Coils | φ470~φ510mm |
Outer Diameter of Coils | Φ1000~φ1800mm |
Coil Weight | ≤8T |
(2)Pipe Specification | |
Pipe size | Round Pipe:ø89-219mm Square Pipe: 80x80 - 175x175mm Thickness: 1.5-6.0mm |
Length | 6m |
Forming Speed | 20-50 m/min |
(3)The buyer should self-supply | |
Total capacity | Around 850 kw |
Circulation Cooling Water (whole system) | Flow:20T/h~30 T/h Pool Volume:30m3 |
Compressed Air (whole system) | Flow:5m³/min Pressure: 5-7kg/㎡ |
Cable | All cable outside of my machine, you buy after machine fix location. |
Usually we send 2-3 engineers to perform the installation and commissioning of the whole line, the buyer should buy round-trip tickets for them, provide food & accommodation as well as local transportation to the engineers, and pay each engineer $150 per day for their technical service.
![]() |
