    Galvanized ERW Ms Steel Pipe Production Line for Round and Square Pipe

    Ask Lasest Price
    Brand Name : Tengtian
    Model Number : HG32
    Certification : CE / ISO
    Price : Negotiable according to different sizes of machine
    Payment Terms : T/T, L/C
    Supply Ability : 100 Sets/Year
    Delivery Time : 2 Months - 4 Months
    • Product Details
    • Company Profile

    Galvanized ERW Ms Steel Pipe Production Line for Round and Square Pipe

    Galvanized ERW Ms Steel Pipe Production Line for Round and Square Pipe

    High speed ms pipe making machinery Fully automation high precision ERW tube mill

    Product Description

    The HG273 mill is used to manufacture of round pipe of Φ114mm-Φ273mm with thickness of 4.0mm-10mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.

    The High precision tube mill has some advantages as follow:

    between level roller jumps 0.01,between frame and slide clearance ≤0.02mm, frame vertical degree ≤0.05, each frame parallel degree ≤0.1mm
    steel pipe diameter and roundness error≤0.08mm.

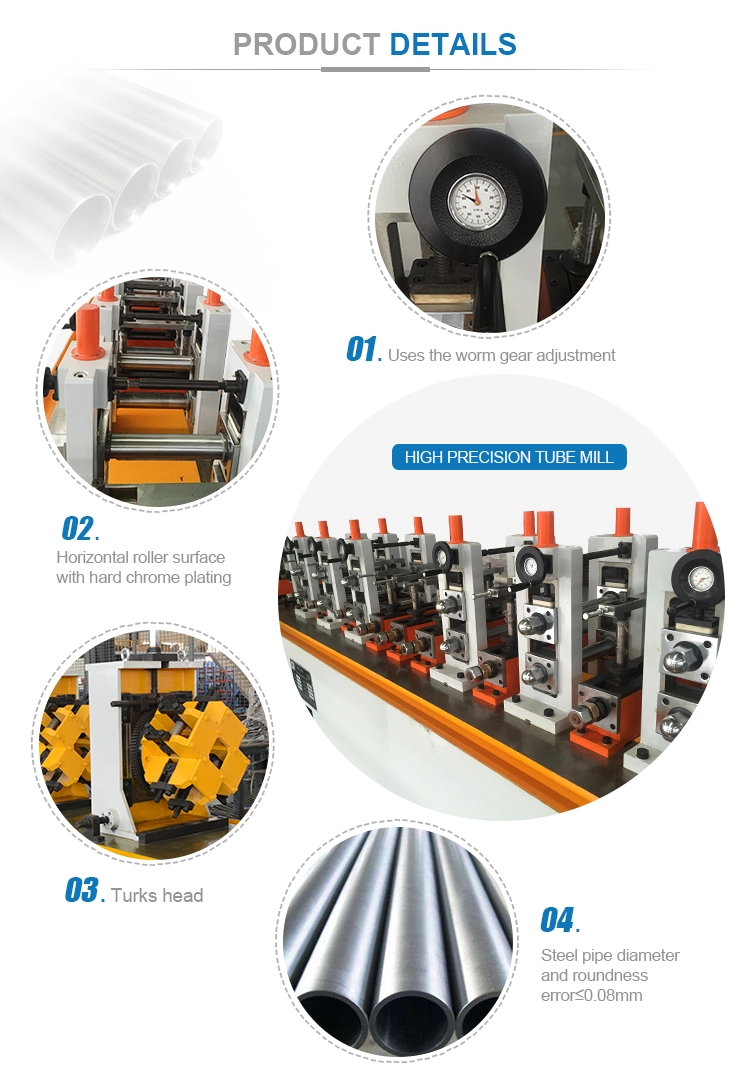

    High precision gi steel pipe making machine

    High precision gi steel pipe making machine


    Product Process:

    material(steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→

    HF soild welder→sizing mill→rounghly straightening(turkey head)→cut off machine→run out table


    The Basic Parameters:

    stands of forming mill7
    stands of sizing mill5
    shaft material40Cr
    round pipe diameter19-76mm
    Round pipe thickness1.5-3.0mm
    square pipe size15×15-60×60mm
    square pipe thickness1.5-2.0mm
    we can design the machine according to the customer detail require.
    ERW Tube Mill Other Model:
    ModelDiameter RangePipe ThicknessLine Speed(m/min)
    HG208-25.4MM0.3-1.2MM120
    HG3210-32MM1.4-1.5MM120
    HG5016-76MM0.7-2.5MM30-120
    HG7625-76MM1-4MM30-100
    HG8932-89MM1-4.5MM30-80
    HG11445-114MM1.5-5.0MM30-60
    HG16560-165MM3-7MM30-50
    HG219114-219MM4-8MM20-40
    HG273114-273MM4-10MM15-30
    HG325165-325MM4-10MM10-30
    HG426165-426MM4-12.7MM8-25
    HG508219-508MM4-16MM8-20

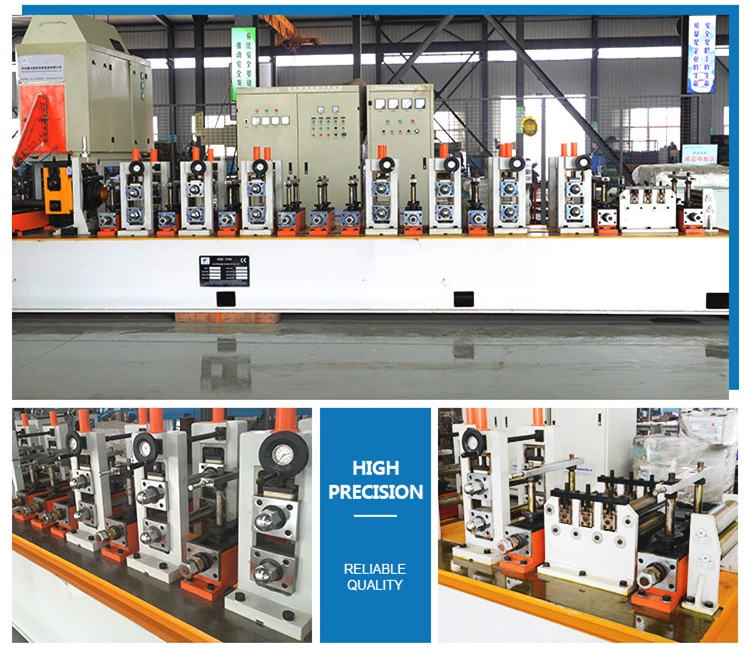

    High precision gi steel pipe making machine

    Applied raw material of erw pipe mill

    Low carbon steel, low alloy steel, galvanized steel, stainless steel,etc.
