Precision Tube Mill , Blue Welded Pipe Mill Professional Dia 114 Mm

Ask Lasest Price
Brand Name :	TENGTIAN
Model Number :	HG 114
Certification :	CE ISO9000 BV
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	5 set/year
Delivery Time :	100 wording days
Price :	$100000 to $1 million

Add to Cart

Product Details
Company Profile

Precision Tube Mill , Blue Welded Pipe Mill Professional Dia 114 Mm

Professional Dia 114 Mm Blue Welded Pipe Mill Precision Tube Mill

1.Machine General Introduction

HG 114 high frequency welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.

Pipe size: 76 - 114 mm Pipe thickness: 1.5 - 4 . 0 mm

2.Main Parameters and Specifications:

⑴ Material Specifications:

Material	low carbon steel galvanize and crabon steel tube
Mechanical properties	σb≤520Mpa,σs≤340MPa
strip width	230 - 360 mm
strip thickness	1 . 5 - 4 . 0 mm
I.D of Coils	520 - 580 mm
O.D of Coils	1000 - 1600 mm
Coil Weight	≤ 7T

⑵ Welded Pipe Specification

Pipe Diameter	Φ 76～ φ 114 mm
pipe thickness	1 . 5 - 4 . 0 mm
Finish pipe length	4 - 6 m
Cut length accuracy	± 3 mm
Forming speed	40 - 50 m/min

(3)Power, Water & Air Supply

1	Power	Power Volume of the Line	Approx.800KW
		Power Source	415V/50Hz/3phases
2	Circulation Cooling Water	Flow	30T/h～40 T/h
		Pool Volume	60m³
3	Compressed Air	Flow	5m³/min
		Pressure	5～7kg/ cm²

(4) workshop require : 100 m X 6 m ,at least 5m high

Notice:You can modify it according to the actual length of the workshop

3.Quality and After-sale Service Warranty

Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.

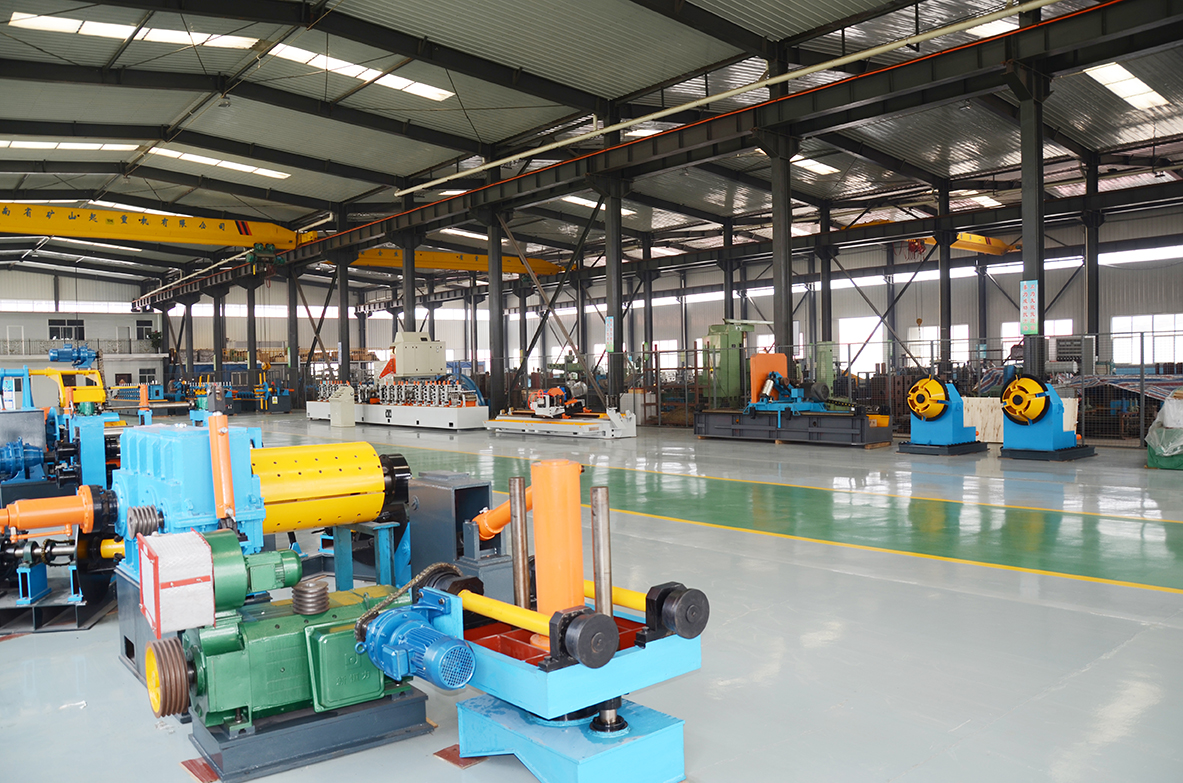

4.About Factory
