    High Frequency Welded Pipe Mill 1mm Straight Seam Welded Steel Pipe Mill Automatic Pack And Bundle Up

    Ask Lasest Price
    Brand Name : TengTian
    Model Number : HG 76.2
    Certification : CE, ISO9001, BV
    Price : $100000 to $1 million
    Payment Terms : L/C, T/T
    Supply Ability : 50 Sets/Year
    Delivery Time : 60 work days
    • Product Details
    • Company Profile

    High Frequency Welded Pipe Mill 1mm Straight Seam Welded Steel Pipe Mill Automatic Pack And Bundle Up

    Straight Seam Welded Pipe Automatic Pack And Bundle Up High Frequency Welded Pipe Mill


    HG 76.2 High-Frequency Welded Pipe Production Line is designed to produce welded pipes of Ф19-Ф76.2mm in diameter and 2.0-4.0 mm in wall thickness and square pipe 15x15-60x60mm,thickness 2.0-4.0mm. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

    According to the designing guideline of improving the operating character & environment and the safety & producing character , reducing the cost of the roller to guarantee high efficiency,HG 76.2 production line adopts the double-radius hole style of design .


    1. Main Parameters and Specifications


    Material SpecificationsConforming to the YB189-64 standard
    MaterialLow carbon steel and low alloy constructional steel
    Mechanical propertiesσb≤520Mpa,σs≤365MPa
    Strip Width60 to 240mm
    Strip Thickness2 to 4mm
    Inner Diameter of Coils480 to 520mm
    Outer Diameter of Coils1000 to 1800mm
    Coil Weight≤3T
    Welded Pipe Specification

    Round Pipe Diameter:φ19-φ76.2mm 2 to 4mm

    Square pipe :15 x15 to 60 x 60mm 2 to 4mm

    Fixed Cutting length4 to 6 m
    Pipe-cutting Precision0 to 3mm
    Forming Speed20 to 130 m/min

    2. Process flow

    1. Coil Loading

    2. Uncoiling

    3. Cutting and Welding

    4. Horizontal Spiral Accumulator

    5. Forming

    6. HF welding

    7. Deburring

    8. Cooling

    9. Sizing

    10. Straightening

    11. Cold-cutting saw

    12. Transmitting

    13. Packing

    14. Storage


    3. Equipment principle

    High frequency straight seam welded pipe production line is the specifications of the steel belt feeding unit, through the roll bring curled up into a tube billet steel, and then use the high frequency of proximity effect and skin effect make the strip edge instantaneous heating to welding temperature, and under the action of squeezing roller complete welding, then through water cooling, sizing and straightening as required specifications of the steel pipe. The product line in each units on the basis of digesting and absorbing domestic and foreign similar equipment, combined with China's national conditions, innovative design, convenient operation and maintenance, simple. The machine has high machining quality and assembly precision, and can produce electric welded steel pipe with high precision by adopting reasonable roll pass.

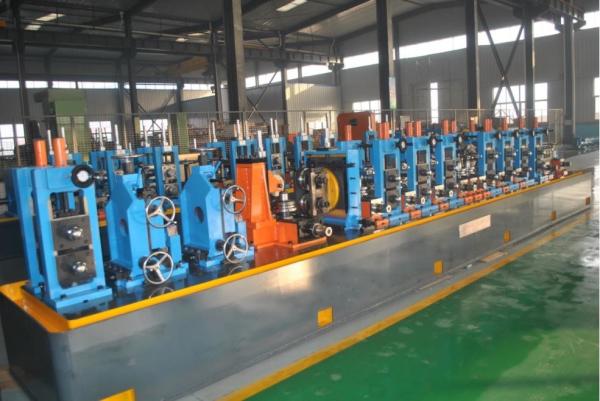

    High Frequency Welded Pipe Mill 1mm Straight Seam Welded Steel Pipe Mill Automatic Pack And Bundle Up
