    Pipe 219mm Diameter Production Round Tube Mill Carbon Steel Welded

    Ask Lasest Price
    Brand Name : TENGTIAN
    Model Number : 219
    Certification : CE ISO9000 BV
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 5 set/month
    Delivery Time : 60 wording days
    Price : $100000 to $1 million
    • Product Details
    • Company Profile

    Pipe 219mm Diameter Production Round Tube Mill Carbon Steel Welded

    Round Pipe Of 219mm diameter production Carbon Steel Welded Pipe Mill

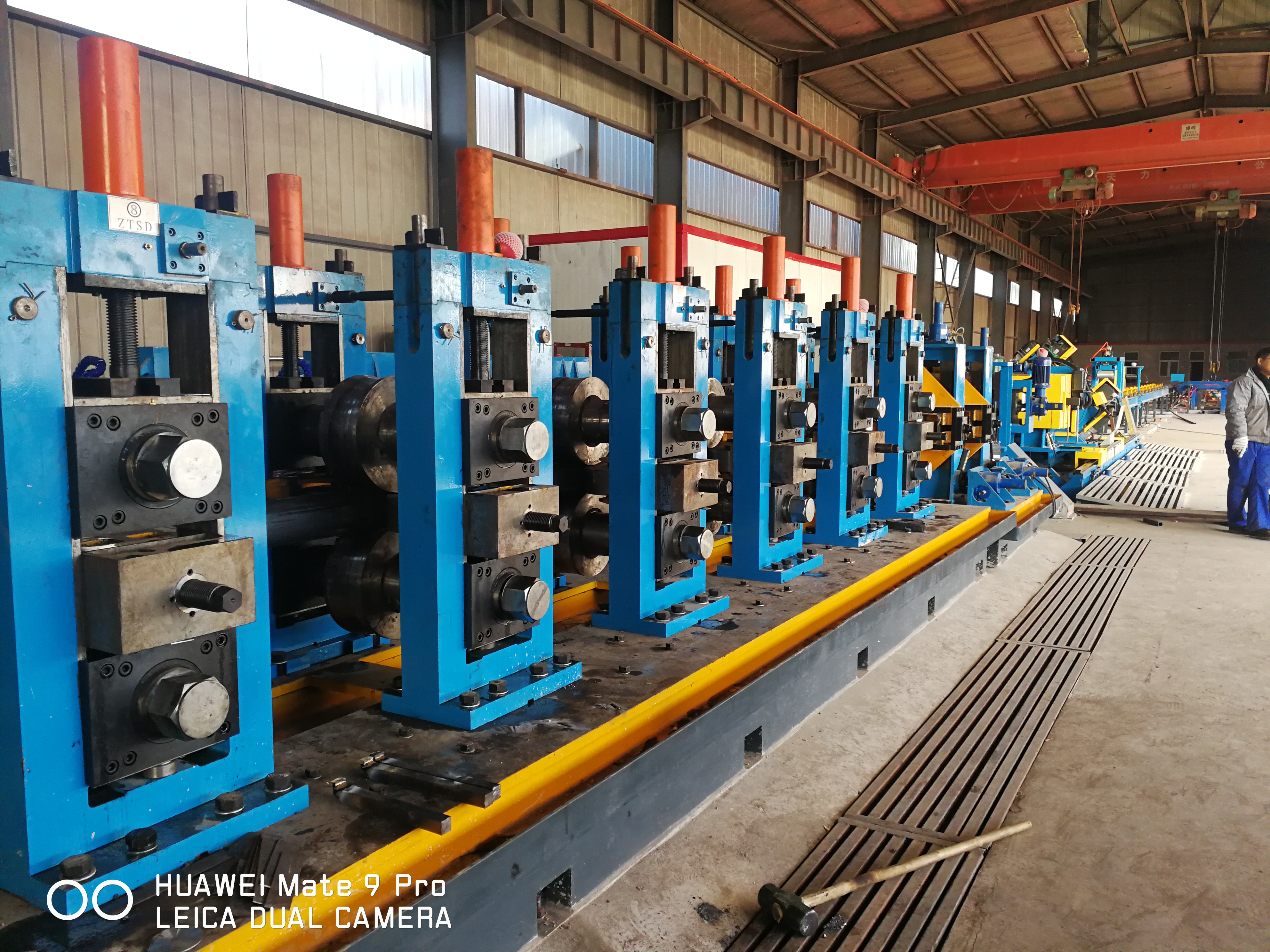

    Machine General Introduction

    HG 219 High-Frequency Welded Pipe Production Line is designed to produce welded round pipes150-219mm in diameter and 2.0-4.0mm in wall thickness. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.


    Main Parameters and Specifications


    (1)Material Specifications:
    StandardConforming to the YB189-64 standard
    MaterialLow carbon steel and low alloy constructional steel
    Mechanical propertiesδs≤345Mpa δb≤610Mpa
    Strip Width200-700mm
    Strip Thickness:2.0-4.0mm
    Inner Diameter of Coilsφ480~φ570mm
    Outer Diameter of Coilsφ1000~φ1800mm
    Coil Weight≤10T
    (2)Pipe Specification
    Pipe Diameter

    Round pipe:150-219mm

    Same size Rec. pipe

    Thickness:2.0-4.0mm

    Length6-12m
    Pipe-cutting Precision0-6mm
    Forming Speed10-50m/min
    (3)The buyer should self-supply
    Work shop60x6m, H>5m(crane to ground)
    PowerApprox.1212KW 380V/50Hz/3phases
    Circulation Cooling Water(whole system)

    Flow:20T/h~30 T/h

    Pool Volume:30m3

    Compressed Air

    (whole system)

    Flow:5m3/min

    Pressure: 5-7kg/ cm2

    OthersSeller will supply list

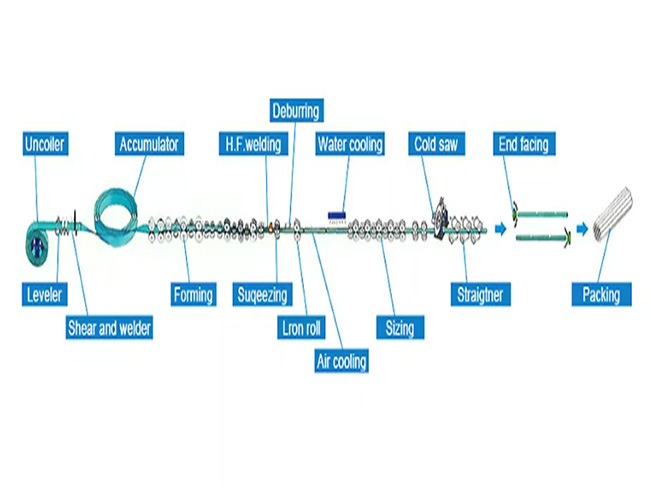

    Working Process

    Scroll up → Uncoil → Cutting head, tail → Strip Steel head-tail butt welding → Spiral accumulator → Forming → High frequency induction welding → Removing external burr → Sizing → Cutting → Checking& collecting → Binding → Weighing → Marking → Accessing Warehouse


    Quality and After-sale Service Warranty


    Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.


    Installation, Commissioning, Test and Training, Warranty


    (1) The engineers from the Seller shall supervise the installation on site and fulfill the commissioning

    (2) Test two sizes of pipes during the commissioning, the mill line is considered qualified if fluent production of 4 hours for each size is reached.

    (3) The Buyer signs in the Certificate of Acceptance.

    (4) The Seller trains the ope..rators of the Buyer during the commissioning.

    (5) Commissioning: about 3-4 engineers in 30 days.

    (6) The Buyer shall pay for the visa fees, international round trip air tickets and the local, such as board and lodging, daily transportation, communication,Insurance, etc. The Buyer shall pay USD120 /day /person to the Seller for the commissioning.

    (7) The Buyer shall prepare an interpreter for better communication between the two sides.

    (8) The warranty period: Normally 1 year after commissioning, except for the problems caused by user’s mistakes.
