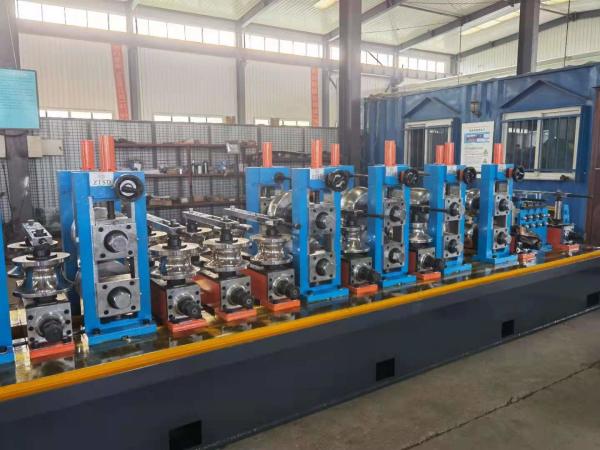

    HR Carbon Steel Tube Making Machine for Round Square Pipe

    Ask Lasest Price
    Brand Name : TengTian
    Model Number : HG
    Certification : CE
    Price : $100000 to $1 million
    Payment Terms : L/C, T/T
    Supply Ability : 50 Sets/Year
    Delivery Time : 120 work days
    • Product Details
    • Company Profile

    HR Carbon Steel Tube Making Machine for Round Square Pipe

    HR Carbon Steel Tube Making Machine for Round Square Pipe


    I. Common product specifications (h×b×cxt)

    No.ModelPipe SizeThicknessSpeed(m/min)Capacity(KW)HF(KW)Area(LxW in Metres)
    1HG20ø8 - ø20 mm0.3 - 1.5 mm30 - 15021010040*12
    2HG32ø10 - ø32 mm0.4 - 2.0 mm30 - 15030015040*12
    3HG50ø16 - ø50 mm0.7 -2.5 mm30 - 15041020060*12
    4HG60ø22 - ø60 mm0.9 - 3.0 mm30 - 15041020060*12
    5HG76Ø25 - ø76 mm1 - 4 mm30 - 12058030080*16
    6HG89Ø32 - ø89 mm1 - 4.5 mm30 - 100660300100*16
    7HG114Ø45 - ø114 mm1.5 -5 mm30 - 80920400100*16
    8HG140Ø50 - ø140 mm1.5 - 5.5 mm30 - 80920400100*16
    9HG165Ø60 - ø165 mm2 - 6 mm30 - 601100500100*16
    10HG219Ø114 - ø219mm3 - 8 mm20 - 451400600150*16
    11HG273Ø114 - ø273mm4 - 12 mm15 - 302100800160*18
    12HG325Ø165 - ø325 mm4 - 14 mm10 - 3025001000200*24
    13HG426Ø165 - ø426 mm4 - 16 mm8 - 2529001200250*24
    14HG508Ø219 - ø508 mm5 - 18 mm5 - 1834001600300*24
    15HG610Ø355 - ø610 mm5 - 18 mm5 - 1837001600300*24
    16HG760Ø426 - ø760 mm5 - 20 mm5 - 2043001800300*24


    II.Introduction

    HR Carbon Steel Tube Making Machine for Round Square Pipe has the advantages of adjustable size and high compressive strength. Widely used in automobiles, railway vehicles, building doors and Windows transportation, shelves, electrical cabinets, highway guardrail, building steel structure, containers, steel formwork and scaffolding, solar bracket shipbuilding, Bridges, transmission towers, steel sheet piles, cable bridge, agricultural machinery, furniture, storage, rail, keel steel, vegetable greenhouses, pipeline support, municipal construction and other fields.


    III.Equipment composition


    uncoiler : double expansion and cantilever mandrels. It contains two main parts: main body and the fixed base. The main body is equipped with pneumatic system to satisfy the needs of expanding, contracting and braking of the mandrels.


    Straightener & leveler :The Straightener is main used to lead the new coil steel head feed into the leveler after uncoiler unit bring the coil into the working place. The Leveler is main used to flatten the head and trail of the strip steel and prepare for the next step shear and welding, so as to ensure the strip steel opposed flate and straight in the shear welding.


    Automatic shear and welding : Used to cut off the irregular part of the tape head and tail, and align the tape tail of the previous coil with the tape head of the next coil, and weld them together.


    Forming and sizing part : this part cold-bends the steel strip into a set shape. The size can be adjusted by the servo motor.


    Cutting machine : It is used for material cutting of continuous non-stop cold-formed steel production line. The cutting method is hydraulic cutting. The high-power servo is equipped with a high-precision reducer and imported rack and pinion transmission. The accuracy of cutting (hole distance) is ±1mm. Install imported high-precision linear guide rail and protective cover


    IV. Factory appearance
