    Carbon Steel ERW Pipe Mill Machine / Pipe Tube Mill Max 80m/Min Worm Gearing

    Ask Lasest Price
    Brand Name : Tengtian
    Model Number : HG60
    Certification : CE, ISO9001, BV
    Price : $100000 to $1 million
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50 set per year
    Delivery Time : 3 months
    • Product Details
    • Company Profile

    Carbon Steel ERW Pipe Mill Machine / Pipe Tube Mill Max 80m/Min Worm Gearing

    ERW high frequency welding carbon steel water supply pipe production mill

    The application of advanced aperture technology, PLC automatic control system and Digital speed regulating unit ensure that the production line works reliably and operates and maintains easily.

    Introduction

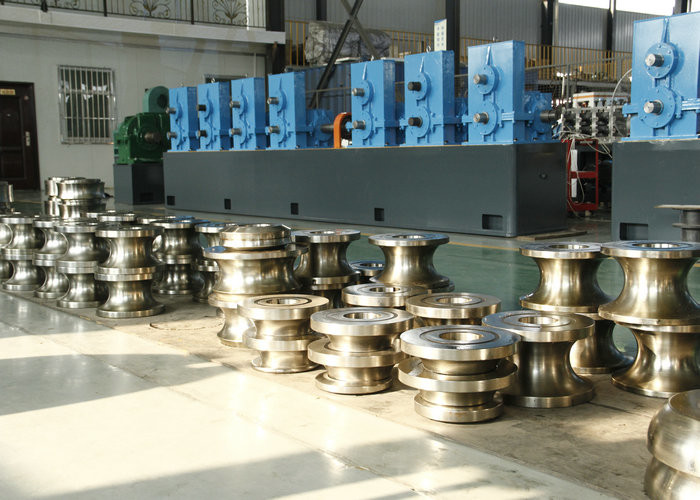

    This equipment is specially used for producing Carbon High Frequency Welded Pipe Mill. It made by refined materials in high precision and equipped with fixed length cutting saw. The main machine includes forming, welding, sizing and straightening device. The composition of equipment is from decoiler to fixed length-cutting saw. Rolling speed can be adjusted correspondingly within suitable range of pipe diameter and wall thickness.


    Process of the Production Line

    Raw material (strip steel roll) – Material feeding – End cutting and butt welding (hand welding) – Strip storage cage – Material feeding and forming – High frequency welding – Removing outer burr – Cooling water jacket – Fix the diameter and straightening – Cut off with flying saw – Material unloading (Manually stow and bind up) – Inspection – Storehouse


    Technical parameter


    High frequency welded pipe mil


    DescriptionWB12
    tube mill line
    WB25
    tube mill line
    WB32
    tube mill line
    WB50
    tube mill line
    Diameter of welded tubesΦ7-25mmΦ8-32mmΦ13-50mmΦ20-60mm
    Wall thickness of welded tubes0.3-1.0mm0.4-1.5mm0.6-1.8mm0.8-2.7mm
    Speed of tube welding90M/min90M/min90M/min70M/min
    Power of major motor22KW37KW55KW75KW
    Power of high frequency welder60KW60KW100KW

    100KW

    ERW Tube Mill Other Model


    ModelDiameter RangePipe ThicknessLine Speed(m/min)
    HG208-25.4MM0.3-1.2MM120
    HG3210-32MM1.4-1.5MM120
    HG5016-76MM0.7-2.5MM30-120
    HG7625-76MM1-4MM30-100
    HG8932-89MM1-4.5MM30-80
    HG11445-114MM1.5-5.0MM30-60
    HG16560-165MM3-7MM30-50
    HG219114-219MM4-8MM20-40
    HG273114-273MM4-10MM15-30
    HG325165-325MM4-10MM10-30
    HG426165-426MM4-12.7MM8-25
    HG508219-508MM4-16MM8-20


    Carbon Steel ERW Pipe Mill Machine / Pipe Tube Mill Max 80m/Min Worm GearingCarbon Steel ERW Pipe Mill Machine / Pipe Tube Mill Max 80m/Min Worm Gearing
