    ERW CS MS High Frequency Welded Pipe Mill TIG Welding Plant CE ISO Certification

    Ask Lasest Price
    Brand Name : Tengtian
    Model Number : HG76
    Certification : CE, ISO9001, BV
    Price : $100000 to $1 million
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 35 set per year
    Delivery Time : three months
    • Product Details
    • Company Profile

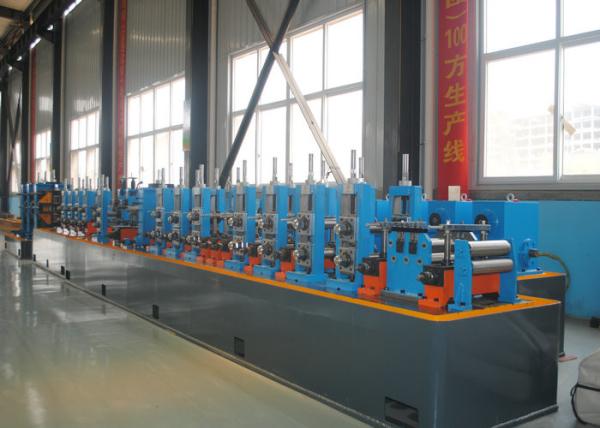

    ERW CS MS High Frequency Welded Pipe Mill TIG Welding Plant CE ISO Certification

    New Condition High Frequency ERW Welded Pipe Making Machine CS MS Tube Mill TIG Welding Plant


    1. General introduction:

    This high frequency welded pipe production line is used to produce steel pipe and cold bending profile steel with material of cold and hot roll mild steel and galvanized roll mild steel (CR, HR & GI) in the fields of metallurgy, construction, traffic, mechanism and vehicle. It can make steel strip of a certain specification

    into round pipe and square and rectangular pipe through cold bending forming and high frequency welding. The forming and sizing machine is designed well, so it can produce the perfect pipe.

    2. Technical process:

    Uncoiling →shear and cross welding→ delivering machine →vertical accumulator →forming → HF Welding → scraper → cooling → sizing → straightening →flying saw →runway → material reverse → rack→ packing → storage



    More Specification

    ModelDiameter(mm)Thickness(mm)Speed(m/min)Main power(kw)HF welder(KW)Area(m2)
    HG3210-320.4-1.530-10025010012x100
    HG5012-500.6-2.530-9030015012x100
    HG7612-761-330-9032020012x100
    HG8932-891-430-8035030012x100
    HG11445-1141.5-5.030-6040030012x100
    HG16560-1653-730-5060040012x100
    HG219114-2194-820-4080050015x150
    HG273114-2734-1015-30100060018x160
    HG325165-3254-1010-30120060012x100
    HG426165-4264-12.78-25140080012x100
    HG508219-5084-168-202000100012x100


    ERW CS MS High Frequency Welded Pipe Mill TIG Welding Plant CE ISO CertificationERW CS MS High Frequency Welded Pipe Mill TIG Welding Plant CE ISO Certification
