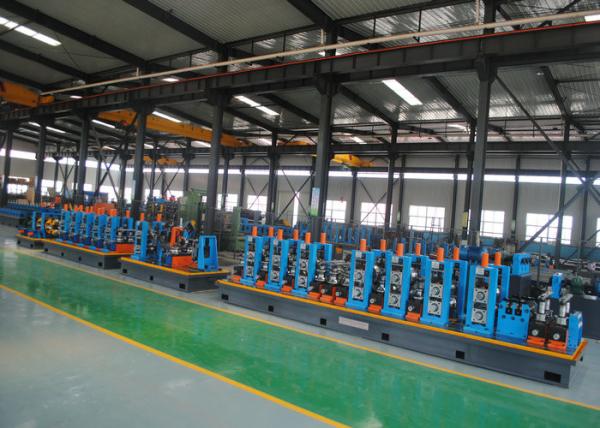

This line is used to manufacture welded steel pipe of Φ32mm-Φ140mm with 1.0mm-5.0mm of wall thickness, can produce Square pipe 25*25 - 110*110mm.

After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.

High-frequency welded pipe machine is a straight seam welded pipe machine, and other pipe machine is different from the place of its welding. High-frequency welded pipe machine is the use of high-frequency resistance vortex is the pipe hot melt and condensation to produce pipe. High-frequency welded pipe machine because of the welding speed, more and more people of all ages, such as oil pipe, natural gas and other large pipe are made using high-frequency welded pipe machine.

Product advantage:

1. High precision
   between level roller jumps 0.01,between frame and slide clearance ≤0.02, frame vertical degree ≤0.05, each frame parallel degree ≤0.1,steel pipe diameter and roundness error≤0.08
2. Use Japanese technology to make foreign clients requirment who need the high accuracy requirement
3. Schedulable use the worm gear and worm adjustment, the adjustment precision is high, energy accurately
4. The scraping scar can be adjusted 3D adjustment , scraper can along the steel circle ±20 ° rotation.
5. Round become square is Turkish head push square, can reduce mold weight, forming stable, uniform R Angle.
6. Level up shaft increase nylon damping block, reduce the impact to the shaft and bearing.

Production Process

Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding→ Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse

Specifications:

1. Raw Material

2. Production Range:

3. H.F. Welder: GGP300Kw Solid State High Frequency Welder

4. Line Spees: Max.70m/min

5. Tube Length: 6-12m

6. Cutting Accuracy: ±3mm

7. Electric installed capacity: appro. 500KW

8. Size of whole line: about 80X9m

Our Services

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.

2.) Warranty Team

One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.

3.) We supply the pre-sell and after-sell service.

pre-sell service: workshop design, and production output design

after-sell service: installation and training, and the skilled engineer for working.

4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.

5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.

6.) We will be responsible for the loading and shipping

Hebei tengtian welding pipe equipment manufacturing co., ltd. is a leading domestic professional

manufacturer of welding pipe forming machinery and related products. With more than ten years

of ERW pipe production experience, the factory covers an area of 50,000 square meters, advanced

equipment, the introduction of advanced modern management system, to ensure the quality of products.
After long-term practice, we have a deeper understanding of users' needs.
With the growth of the enterprise, we can provide all range of welded pipe forming machinery from

single machine to complete the pipe mill production line, we also provide "turnkey engineering"

system solutions for our customers from all over the world, including upgrading the old system,

after-sales service completion, test run and worker training services.
The company adheres to the principle of "quality first, customer first", the products are exported

to South America, southeast Asia, Africa, Europe, Australia, Russia, South Korea and other countries

and regions.
Welcome to our factory, we will provide the most suitable technical solution and the most reasonable

price for our customers.The company has obtained ISO 9001 certification, CE certification and

international BV certification.
