    HRC Material Welded Pipe Mill carbon Steel Pipe Mill Max.14mm Thickness

    Ask Lasest Price
    Brand Name : Teng Tian
    Model Number : LX1550-14-2020mm
    Certification : CE / ISO9001
    Price : $100000 to $1 million
    Payment Terms : T/T, L/C
    Supply Ability : 20 SETS / YEAR
    Delivery Time : 6 MONTHS
    • Product Details
    • Company Profile

    HRC Material Welded Pipe Mill carbon Steel Pipe Mill Max.14mm Thickness

    China manufacturer straight seam welded pipe galvanized fire fighting pipes

    1. Introduction

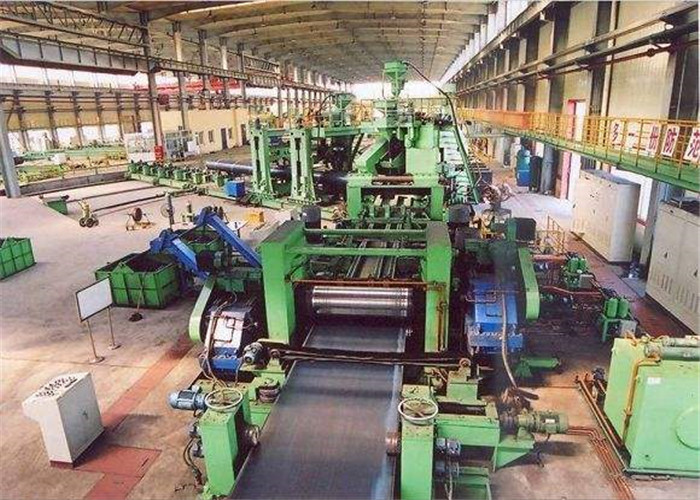

    Spiral welded pipe mill is used to roll the low carbon steel/ low alloy steel strip into tube by a certain forming angle, further weld it into steel pipe by sub-merged arc welder.

    Large diameter pipes can be produced with narrow steel strip.


    2. Function

    For liquid delivery: water supply& drainage;
    For gas delivery: coal gas, steam and LPG;
    For structural use: piling pipe, structural pipe in the field of bridge, dock, road, and construction, etc.


    3. Process flow
    Feeding→uncoiling→leveling→shearing& butt welding→rotary shear→edge milling→main drive→pre-bend& guide board→forming→inside welding→outside welding→cutting off→pull out→end-facing& beveling→hydrotesting→collection


    SeriesMin Pipe O.D.Max Pipe O.D.Min ThicknessMax ThicknessCoil widthMax Production capacityArea
    mmmmmmmmmmton/yearm2
    LX600219 - 508325 - 8202 - 44 - 10400 - 6008000 - 1200020×96
    LX800219 - 508406 - 12202 - 44 - 12400 - 8009000 - 1700020×96
    LX1050219 - 508630 - 16202 - 44 - 14450 - 105016000 - 2300024×108
    LX1250406 - 610820 - 16203 - 68 - 18500 - 125026000 - 3500024×108
    LX1550406 - 6101420 - 3200+3 - 612 - 25.4+500 - 155036000 - 7600026×125
    LH2000406 - 6102020 - 3200+4 - 620 - 25.4+1000 - 200077000 - 93000
